Adding Attribute Values

Navigate to: Merchandise > Attribute > Values
Overview
Attribute values are the specific options defined under an attribute. For example, if the attribute is Color, the values can be Red, Blue, Green, Purple. Attribute values help create product variations and personalization options
Example

  • Attribute: Color

  • Attribute Values: Red, Blue, Green, Purple

Here, "Color" is the main attribute, and the selectable options available under it are Red, Blue, Green, Purple.
Steps to Add Attribute Values

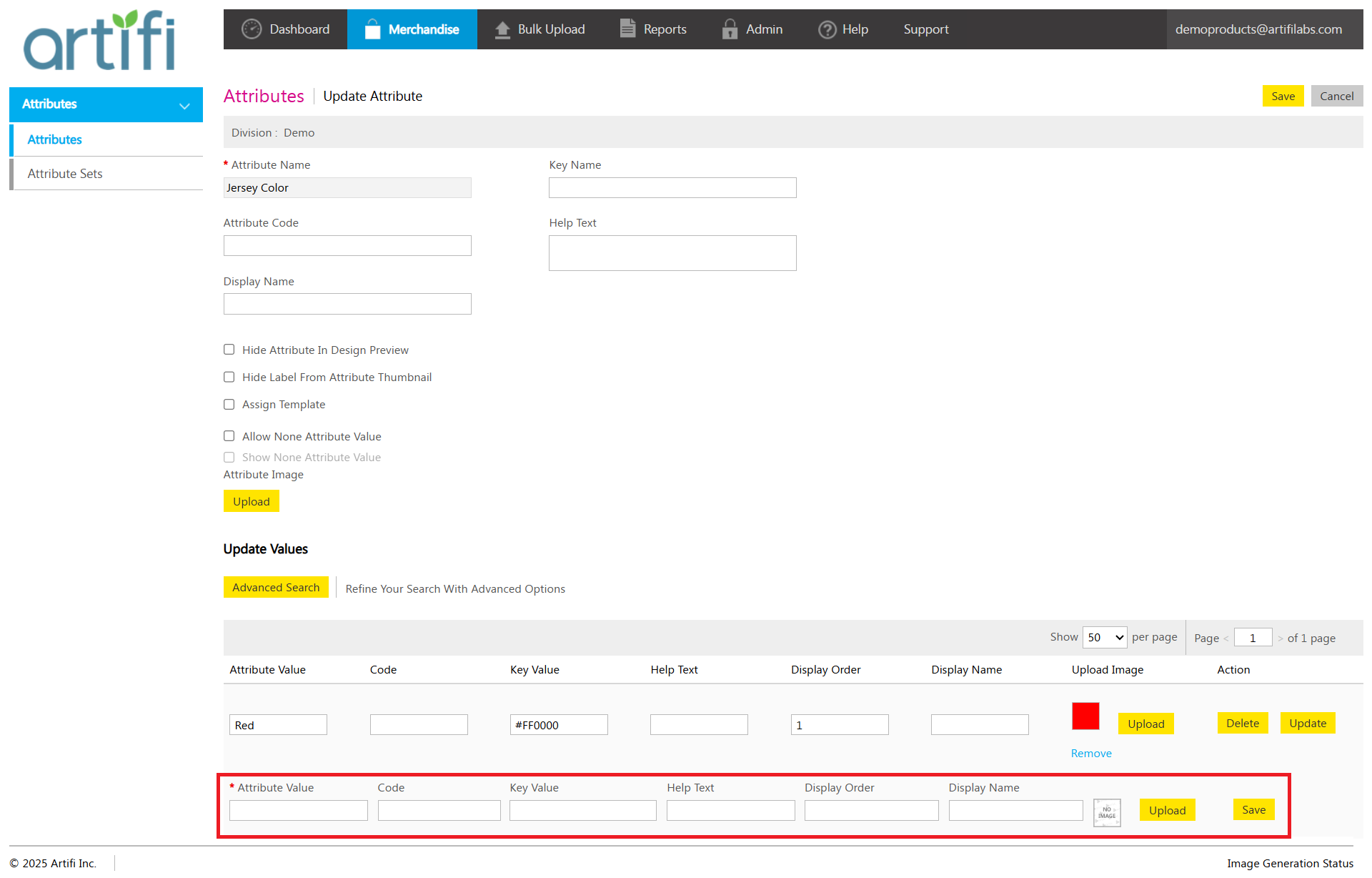

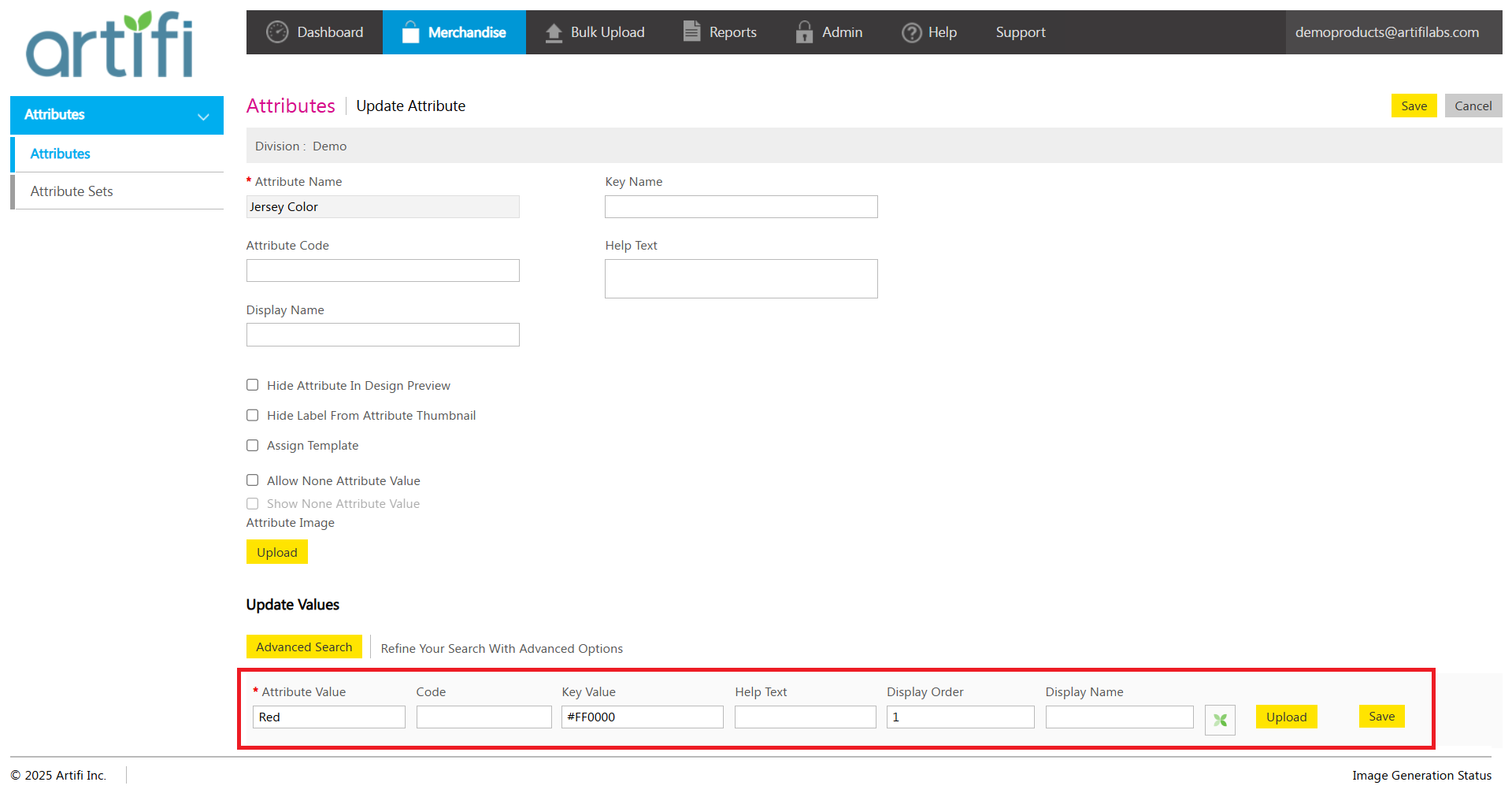

1. After adding the Attribute, fields will appear below on the same page where you can enter the values.

2. Enter the values in the field and click on the Save button.

3. Another row will appear to add another value. In a similar way, any number of values can be added to an attribute.

Note: For each row admin users need to hit the “Save” button to reflect the changes

Attribute Value Property Details

Attribute Value PropertiesDetails
Attribute ValueThe value name displayed on the designer
CodeThis field is mandatory if the value is used for Artifi 2D colorization. It can also be used for additional pricing.
Key ValueThe Hex Code is used to change the product color when applying 2D colorization in Artifi. It can also be used for variant swatch images. When a product variant is changed, this is the value triggered on the designer to update the product attribute and its combination.
Help TextOptional text to provide additional information about the value or key value for future reference.
Display OrderDefines the sequence in which values are shown on the designer.
Display NameThis is the display name of the attribute values. Suppose value is White#ffffff then the Display name can be White.
Upload
  • If a hex code is not provided in the Key Value, you can upload a swatch image manually.

  • If a hex code is provided, a swatch will be automatically generated, and uploading a swatch image is not required.

  • The swatch image (if uploaded) will be displayed on the designer.

  • If no swatch image is uploaded, the attribute will appear as a dropdown option in the designer.

  • Recommended swatch image size: 100px × 100px.

Q&A

Q1: Why is the swatch not visible to the designer?

  • Ensure the color hex code is added or swatch image is uploaded while creating the attribute value.

  • Review if the Attribute Set is created the attribute is assigned to that attribute set.

  • Confirm that the attribute is assigned to the product in the product setup.

Q2: How to show a dropdown on the designer? What should be the setup?

  • While adding an attribute value, leave the Key Value blank, also do not upload the swatch image against the value.

  • The designer will then display a dropdown list with the available values.

Q3: How to add an additional variant when an extra color is required?

  • Navigate to the existing attribute, open the attribute.

  • Add the additional color details in the below fields of the attribute value and save the value.

  • Navigate to the product variant and add the additional color in the variant.

  • Now the designer will allow selection of the additional color as part of the variant.
